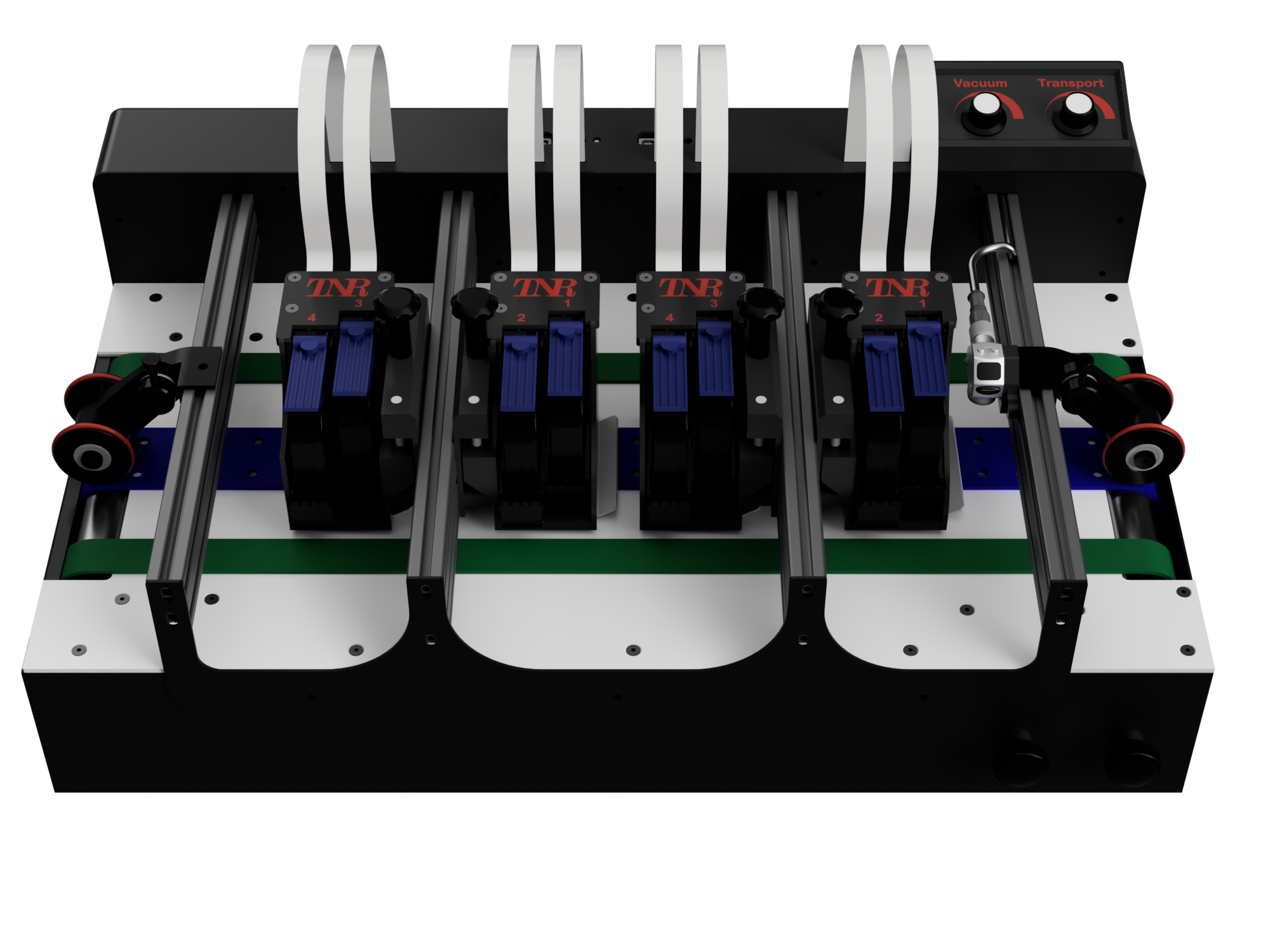

TNR VP-IL Series In-Line Printer
Compact, Budget-Friendly In-Line Printing with Up to 4 Inches of Print Area
The TNR VP-IL Series is designed for seamless in-line integration, offering up to 4 inches of total print area across four independently adjustable 1-inch print banks. Backed by Walz Label & Mailing Systems—family-owned since 1966 with real people ready to answer your calls across Illinois, Iowa, Indiana, and Missouri—this system delivers powerful variable data printing in a compact footprint.
Configure the VP-IL with as little as 0.5 inches of print area for minimal single-line data (such as barcodes or dates) to maximize cost savings, or scale up to the full 4 inches for comprehensive mailing needs. The system easily adapts to your workflow with a field-convertible right-to-left or left-to-right paper travel direction.
Say goodbye to problematic pinch rollers. The VP-IL utilizes a central vacuum belt with an adjustable vacuum fan and two adjustable side belts to maintain absolute control over your media—even directly under the print head. Furthermore, the open ink system accepts non-chipped HP45-style cartridges (water-based or solvent-based), massively reducing your ongoing consumable costs without locking you into a single proprietary supplier.
Equipped with software-controlled relay outputs for automated sort breaks and accessories, the VP-IL series pairs peak performance with exceptional value.
- Up to 4" total print area in four 1" independently adjustable banks
- Configurable down to 0.5" for minimal one-line data printing
- Central vacuum belt transport with adjustable vacuum fan (no pinch rollers)
- Open ink system accepts non-chipped HP45-style water and solvent-based cartridges
- Field-convertible right-to-left or left-to-right product travel direction
- Software-controlled relay outputs for sort breaks and accessory integration
- Compact, budget-friendly in-line footprint
- Supported by Central Illinois's Walz Label & Mailing Systems—family-owned since 1966
VP-IL Address Printer Features & Specs
| Features | Specifications |
|---|---|
| Print Speeds |
Up to 400 feet per minute (80 ips) (80ips equates to over 28,500 #10 envelopes/hr.) |
| Print Resolutions | 300x100dpi - 600x600dpi with many options in-between |
|
Print Technology |
Thermal Inkjet HP45 style (water & solvent based) |
| Operator Panel | Feeder Start/stop and Speed Integration, Full Vacuum Control |
| Media In-line Min/Max | 1"L x 2"W x 1 sheet H / 124"L x 14"W x .5"H (Removable front bracket allows oversized media) |
| Media w/ Standard Feeder Min/Max | 2.25”L x 2.25”W x 1 sheet H / 16"L x 14"W x .5" High |
| Transport Base Dimensions | 26.00"L x 16.5"W x 10.25"H |
| Dimensions W/ Standard Feeder | 41.75"L x 20"W x 16"H (57.75"L W/ acceleration table) |
| Media Control Type | True Vacuum w/ Variable Speed |
| Operating Environment | Recommended: 60° F - 85° F | Humidity: 20-80% RH |
| Power | 110V to 240V, 50/60Hz |
| Connectivity | USB 2.0+ |
| Warranty | 1 Year Factory Warranty on parts | Extended Warranty Available |
