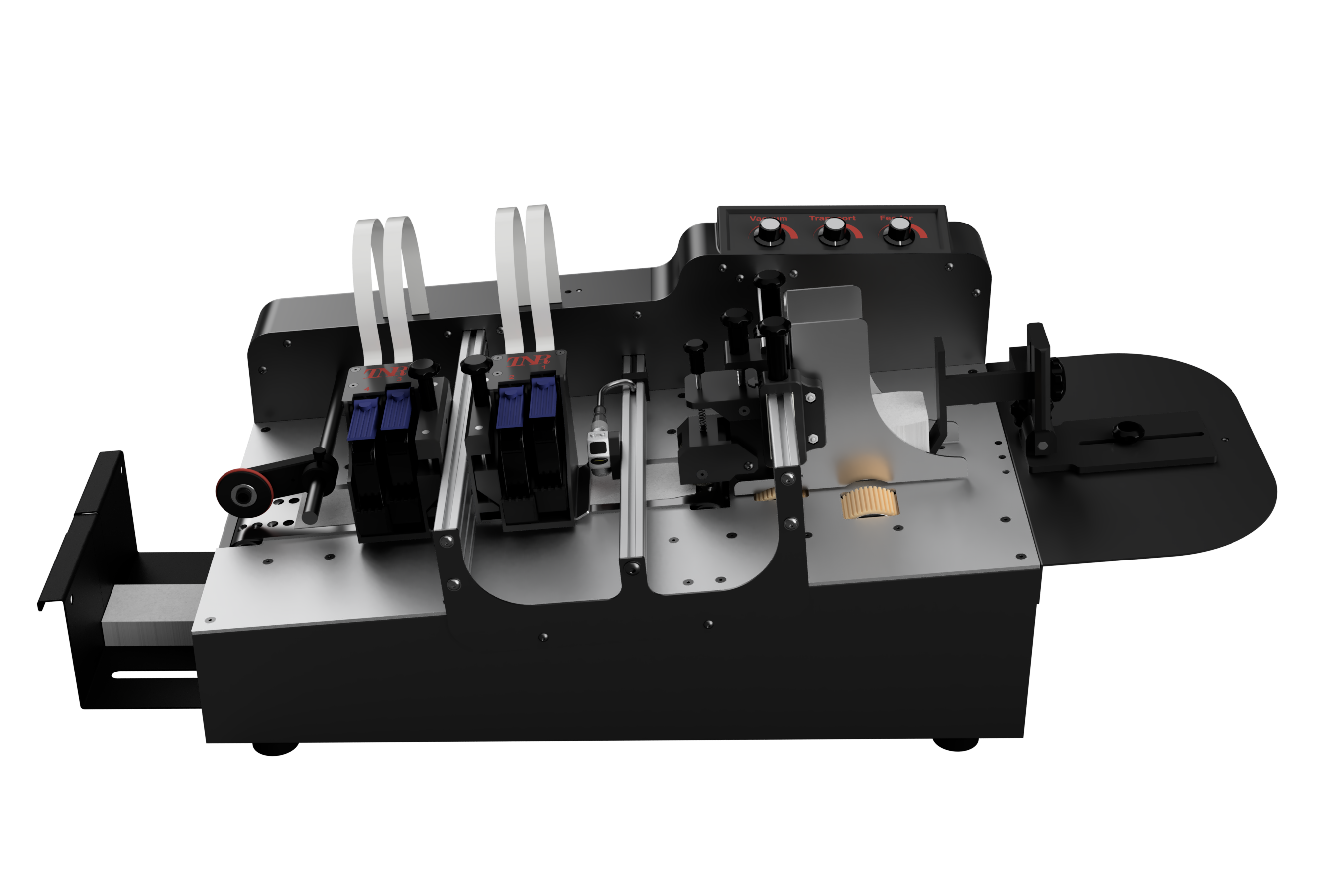

TNR VP-S Series Seed Packet & Plant Stake Printer
Purpose-Built Industrial Printing for Agricultural Media and Small Substrates
Inspired by the industry-proven Accufast P4, the TNR VP-S Series is engineered from the ground up specifically for small agricultural media. Whether you are printing variable data, lot codes, expiration dates, barcodes, or vibrant branding onto seed packets, plant stakes, and tags, the VP-S delivers exceptional precision and reliability.
Featuring a standard 2-inch total print height divided into two independently adjustable 1-inch print banks, the VP-S quickly adapts to diverse packet sizes and layout requirements. An optional 0.5-inch configuration is also available for streamlined single-line data printing, ensuring you only pay for the capability you need.
Say goodbye to jammed media, skewing, and marking caused by traditional pinch rollers. The VP-S utilizes a variable-speed, true vacuum transport base that maintains absolute control over every piece—even directly underneath the print head. Combined with its open ink system that accepts any non-chipped HP45-style cartridge (water-based or solvent-based), you can drastically reduce ongoing consumable costs without being locked into a single proprietary supplier.
Streamline your agricultural packaging line with integrated feeder controls, configurable sort breaks, and robust performance capable of handling real-world coated stocks, paper packets, and plastic stakes with ease.
- Purpose-built specifically for seed packets, plant stakes, tags, and small agricultural media
- Flexible 2" total print height with two independently adjustable 1" print banks
- True vacuum transport base eliminates pinch rollers, jams, and media skewing
- Open ink system accepts standard HP45-style cartridges for massive cost savings
- Blazing print speeds up to 400 feet per minute (80 ips)
- High-resolution printing from 300x100 dpi up to 600x600 dpi
- Accommodates media up to 14" L x 10.75" W x 0.5" H ( longer with optional extension table)
- User-friendly operator panel with integrated transport and feeder speed controls
TNR VP-S Specifications
| Features | Specifications |
|---|---|
| Print Speeds |
Up to 400 feet per minute (80 ips) (Equivalent to over 28,500 #10 envelopes/hr.) |
| Print Resolution | 300x100 dpi up to 600x600 dpi |
|
Print Technology Ink Compatibility |
Thermal Inkjet HP45 style (water & solvent-based) |
| Maximum Thickness | Up to 0.5" |
| Minimum Document Size | 1" L x 1" W x 1 sheet H |
| Maximum Document Size | 14" L x 10.75" W x 0.5" H |
| Media Control Type | True Vacuum with Variable Speed |
| Transport Base Dimensions | 26.00" L x 15.75" W x 12.5" H (43.125" L with extension table) |
| Connectivity | USB 2.0+ |
| Power | 110V to 240V, 50/60Hz |
| Warranty | 1 Year Factory Warranty on Parts |
