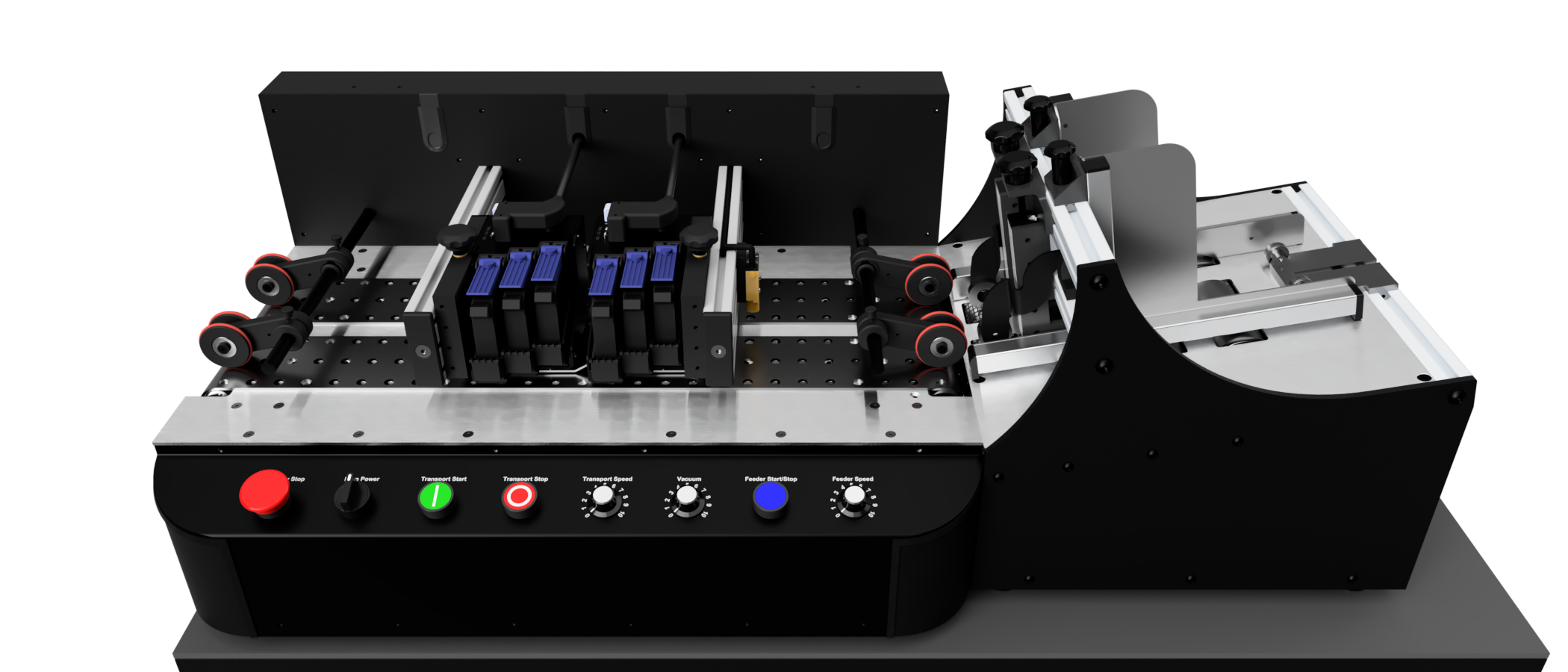

TNR VP-X Series High-Speed Industrial Printer
Versatile Wide-Format Printing with Up to 6 Inches of Print Area
Engineered for high-volume production environments, the TNR VP-X Series delivers exceptional versatility and raw processing power. Whether you are printing variable addresses, barcodes, or graphics across wide formats, the VP-X handles complex industrial jobs with ease. Family-owned and operated since 1966, Walz Label and Mailing Systems proudly brings this robust system to mailrooms and packaging facilities across Illinois, Iowa, Indiana, and Missouri—backed by real people ready to answer your call.
The VP-X series is fully configurable with up to 6 inches of total print area split into independently adjustable 1.5-inch banks. Its field-convertible paper travel direction (easily switched between left-to-right and right-to-left) adapts seamlessly to your existing production line layout. Plus, an innovative open-front design allows you to feed oversized and hanging media without restriction.
Eliminate maintenance headaches caused by traditional pinch rollers. The VP-X features a multi-zone, variable-speed true vacuum transport base that maintains absolute control over every piece while operating at quieter, lower vacuum levels. Combined with its open ink system that accepts standard, non-chipped HP45-style cartridges (water-based or solvent-based), you gain total freedom from proprietary ink lock-in and dramatic ongoing cost savings.
- Up to 6" total print height configurable in independent 1.5" print banks
- Multi-zone variable speed true vacuum transport eliminates pinch rollers and media jams
- Open-front design effortlessly accommodates oversized and hanging media
- Open ink system accepts non-chipped HP45-style water and solvent-based cartridges
- Blazing print speeds up to 500 feet per minute (100 ips / 36,000+ #10 envelopes/hr.)
- Field-convertible left-to-right or right-to-left paper travel direction
- Handles substrates up to 14" wide and 3/4" thick
- Backed by Central Illinois's Walz Equipment—family-owned since 1966 with real support staff
TNR VP-X Specifications
| Features | Specifications |
|---|---|
| Print Speeds |
Up to 500 feet per minute (100 ips) (Equivalent to over 36,000 #10 envelopes/hr.) |
| Print Resolution | 300x100 dpi up to 600x600 dpi with many options in between |
|
Print Technology Ink Compatibility |
Thermal Inkjet HP45 style (water & solvent-based) |
| Media Inline | 1"L x 2"W* x 1 sheet H - XL x 14"W* x .75"H (*The open front allows for oversized media) |
| Media With Standard Feeder | 2.25”L x 2.25”W - 16"L” x 14"W 1 sheet - 1” Thick With Standard Feeder |
| Media Control Type | Multi-Zone True Vacuum with Variable Speed |
| Operating Environment | Recommended: 60° F - 85° F / 15.6° C - 29.4° C | Humidity: 20-80-% RH |
| Transport Base Dimensions Dimensions With Standard Feeder |
28.125" L x 20" W x 14" H (43.875" L with standard feeder) 43.875"L* x 20"W x 16"H (*59.875"L W/ acceleration table) |
| Connectivity | USB 2.0+ |
| Power | 110V to 240V, 50/60Hz |
| Warranty | 1 Year Factory Warranty on Parts |
